Model DF100C / 115B / 140B
DF140A/115A's Reliability & Fuel Efficiency + Cutting Edge Technology.
Easy Maintenance
- Designed to be easy maintenance for the benefits of the customers
Advantage

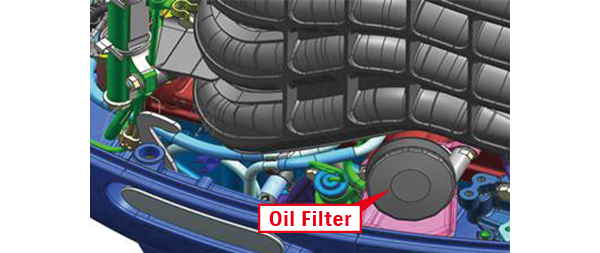

- Easy access oil filter : Can be replaced simply by removing the top cover

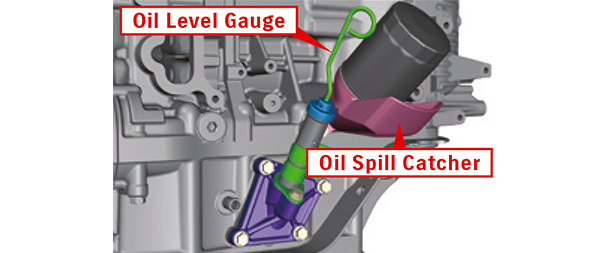

- Oil Spill Catcher : A tray is added around the oil filter to catch oil which comes out when exchanging the oil filter
- Oil Level Gauge : Able to use Φ15 oil changer hose
High Durability

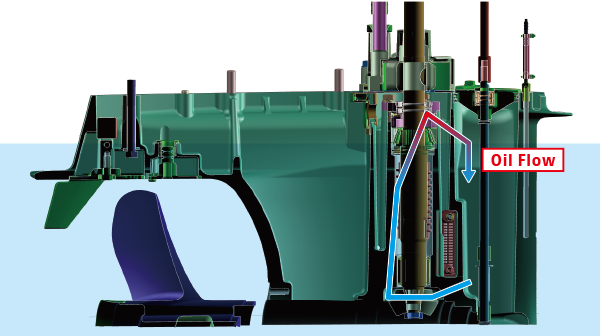

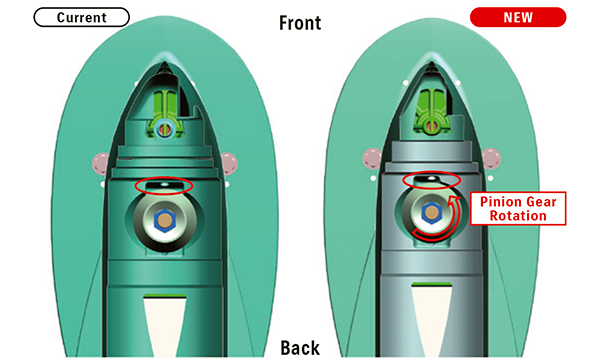

Improved Gear Case
- By optimizing the gear oil passage, the spinning pinion gear generates negative pressure and it helps gear oil circulation.
Advantage
- It lowers gear oil temperature and contributes to the increased durability of pinion gear.
Dynamic & Smooth Design
DURABILITY & RELIABILITY
PERFORMANCE
EASE & COMFORT
*2 Available with SMG or Troll Mode Switch Panel
ECOLOGY & ECONOMY

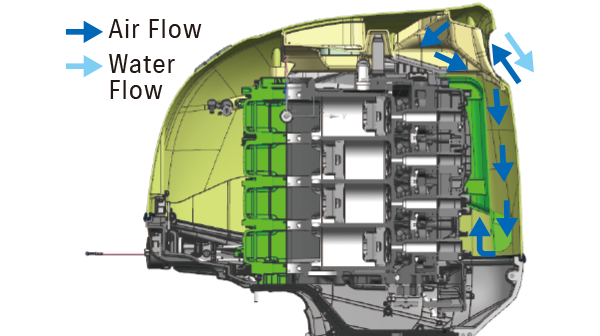

Newly Designed Air Intake System
- The air intake structure was reviewed
ADVANTAGE
- Delivers higher power output
- Increased ability to remove water from air taken into cowl
- Decrease in the air intake temperature

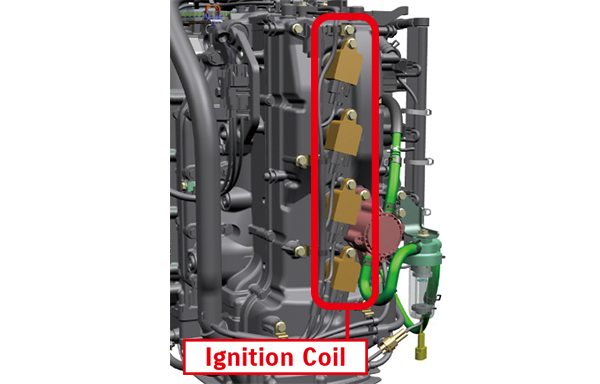

Direct Ignition
- Integrates the ignition coils into the spark plug caps
ADVANTAGE
- Reduces the number of parts and simplifies the wiring system
- Removing the high tension cord enables the ignition to generate spark efficiently which leads to the improvement of combustion efficiency

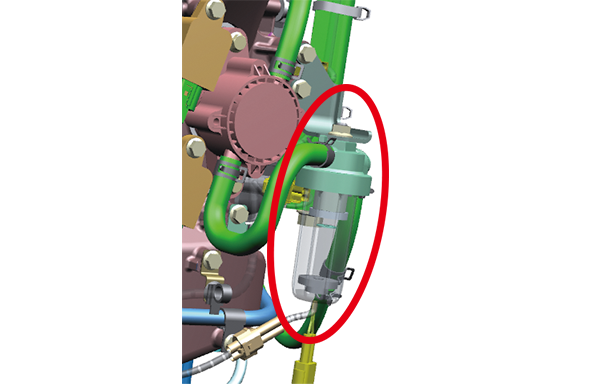

Water Detecting System
EXPLANATION
- It helps to protect the engine from water in the fuel
- Using bigger fuel filter than DF140A/115A
- Optimized Fuel Filter position
ADVANTAGE
- Can avoid water in fuel
- Increased Durability & Reliability
- Easy replacement of fuel filter
More Features to contribute to Durability
EXPLANATION
- Large capacity Fuel Pump : Capable to rig on various kinds of boats
- Optimized O2 Sensor mounting position : Increased Durability
- Using Zinc-containing Rustproof Coating bolt : Increased Durability
High Compression Ratio
- To achieve the optimized mask, port and piston combination, the shape of parts was simulated over 1,000 combinations and then tested thoroughly with the carefully selected parts.
ADVANTAGE
- Generates good combustion that makes better fuel efficiency compared with A model.
- Achieved 10.6 Compression Ratio which contributes to high torque.
Offset Drive Shaft
- The engine powerhead is positioned closer to the front, moving the outboard’s center of gravity forward.
ADVANTAGE
- Less vibration
- More compact
- Stable steering performance
STREAMLINED GEAR CASE AND HIGHLY EFFICIENT PROPELLER
- This system which incorporates the Offset Driveshaft features a first stage reduction between the crankshaft and drive shaft, and a second stage reduction inside the gear case.
ADVANTAGE
- High Torque even with big loads.
- Powerful enough to rotate larger propeller

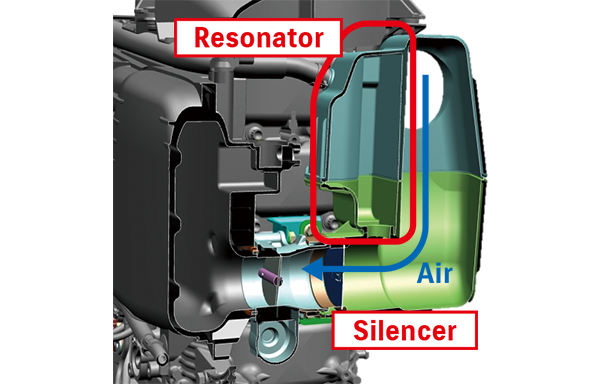

Quiet Operation
EXPLANATION
- Intake noise is suppressed with a resonator, which makes the noise from the outboard quieter.
ADVANTAGE
- Less noise, making boating more pleasant.
WATER DETECTING SYSTEM (THIS EQUIPMENT IS ONLY FOR DF100B)
EXPLANATION

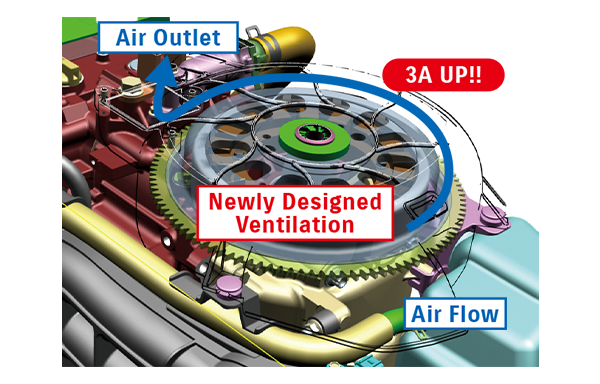

- Newly designed ventilation which cools the coils better
ADVANTAGE
- 3Amp better alternator output at idle speed range that is good for boats that spend a lot of time trolling.

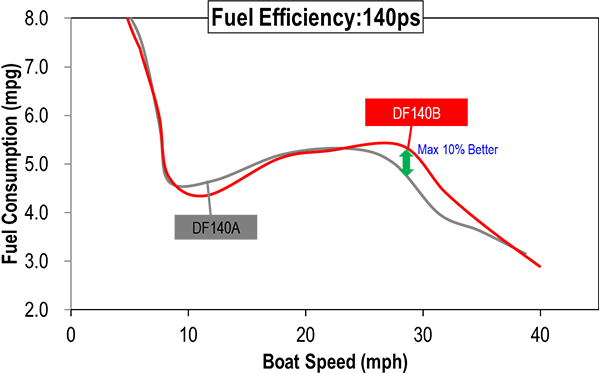

Lean Burn Control System
- The Lean Burn Control System supplies the appropriate amount of fuel and air mixture depending on the navigation conditions.
ADVANTAGE
- Significant improvement in fuel economy in all speed ranges especially at cruising speed.
- Fuel is saved and gasoline costs are cut thanks to improved fuel economy.
| MODEL | DF140B | DF115B | DF100C |
| RECOMMENDED TRANSOM HEIGHT mm | L:508, X:635 | L:508, X:635 | L:508, X:635 |
| STARTING SYSTEM | Electric | Electric | Electric |
| WEIGHT kg *1 | L: 186, X: 190 | L: 188, X: 192 | L: 188, X: 192 |
| VALVE TRAIN | DOHC 16-Valve | DOHC 16-Valve | DOHC 16-Valve |
| FUEL DELIVERY SYSTEM | Multi-Point Sequential Electric Fuel Injection | Multi-Point Sequential Electric Fuel Injection | Multi-Point Sequential Electric Fuel Injection |
| NO. OF CYLINDERS | 4 | 4 | 4 |
| PISTON DISPLACEMENT cm3 | 2,045 | 2,045 | 2,045 |
| COMPRESSION RATIO | 10.6 | 10.6 | 10.6 |
| BORE × STROKE mm | 86 x 88 | 86 x 88 | 86 x 88 |
| MAXIMUM OUTPUT kW | 103 | 84.6 | 73.6 |
| FULL THROTTLE OPERATING RANGE rpm | 5,700-6,300 | 5,000-6,000 | 5,000-6,000 |
| STEERING | Remote | Remote | Remote |
| OIL PAN CAPACITY Lit. | 5.5 | 5.5 | 5.5 |
| RECOMMENDED FUEL | RON91 / AKI87 | RON91 / AKI87 | RON91 / AKI87 |
| ALTERNATOR | 20A/700rpm , 40A/6000rpm | 20A/700rpm , 40A/6000rpm | 20A/700rpm , 40A/6000rpm |
| ENGINE MOUNTING | Shear Mount | Shear Mount | Shear Mount |
| TRIM METHOD | Power Trim and Tilt | Power Trim and Tilt | Power Trim and Tilt |
| GEAR RATIO | 2.59:1 | 2.59:1 | 2.59:1 |
| PROPELLER SELECTION (Pitch) | 15″-25″(RR), 17″-23″(CR) | 15″-25″(RR), 17″-23″(CR) | 15″-25″(RR), 17″-23″(CR) |
The appearance, colors, and equipment of outboard motors may differ according to market and grade.
Specifications may change without prior notice.
*Manufacture data
