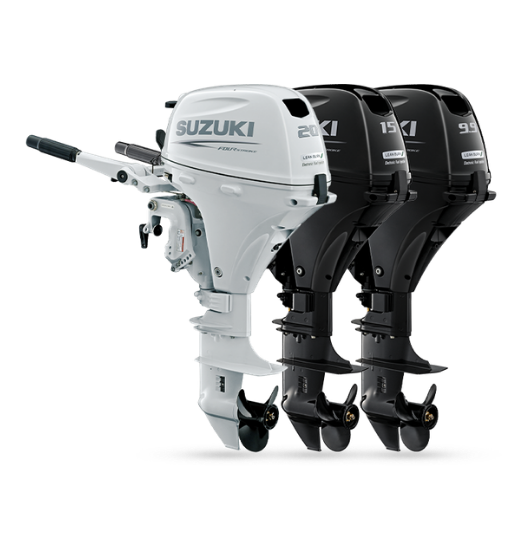

Model DF9.9B / 15A / 20A
Light, compact and powerful, our portable outboards are always ready for action.
Fuel Efficiency
The DF20A, 15A and 9.9B hold claim to being the world’s first battery-less electronic fuel injection four-strokes in each of their power classes. Using all-new fuel injection system components designed smaller and lighter than those found in any previous system, Suzuki engineers succeeded in creating the lightest four-stroke in the 14.7kW (20PS)/11.0kW (15PS) class. And adding Suzuki’s proven Lean Burn Control technology to their design, these outboards deliver remarkable fuel economy and reduced emissions throughout their operating range.
Lean Burn Control System
Suzuki four strokes are rightly famous for their fuel efficiency and technology that lets you go further, for less.

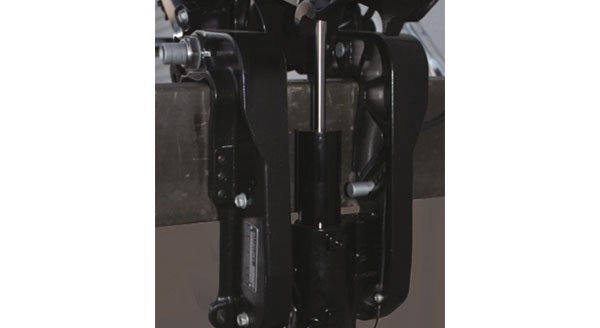

Power Tilt Models Available
In addition to the DF20A/15A/9.9B, Suzuki’s portable lineup also includes four power tilt models which are the DF20AT and 9.9BT remote control models, and the DF20ATH and 15ATH tiller handle models.
Cleaner, More Efficient Operation
Suzuki utilizes a number of its advanced technologies to deliver cleaner, more efficient operation that conforms to the Recreational Craft Directive (RCD) – Directive 2003/44EC of the European Parliament and of the Council, and has received three-star ratings from the California Air Resources Board (CARB).
SELF-ADJUSTING TIMING CHAIN
The sleeve, under panel and upper panel of the water pump is hardened with hard chrome plating to increase durability against sand and mud.
Programmed Tilt (for Shallow Water Drive)
The outboards feature a programmed tilt system that offers easy, three-stage adjustment of the outboard angle for shallow water operation. The system is equipped with a reverse lock that automatically engages when the engine is returned to its normal operating position to prevent the engine from kicking up.
Carrying Handle
A new retractable carrying handle folds down and out of the way, when not needed. In addition to making the outboard easier to carry, it gives the engine a more compact form when mounted on the transom.
Keystone Piston Rings
Special keystone piston rings use a unique design that delivers more power to the crankshaft with reduced energy loss. The rings also increase combustion efficiency, offer greater durability, reduce fuel consumption, and lessen the chance of sticking rings.
Through Prop Hub Exhaust
In addition to quiet operation, a through prop hub exhaust system provides greater exhaust efficiency resulting in increased combustion and acceleration. Other advantages include reduced power loss and superior high-speed operation.
Loop Charge Intake System
Dome-shaped pistons and cylinder heads help move more air and fuel into and exhaust out of the cylinder increasing both combustion and power for every stroke. With this, Suzuki’s two-strokes deliver better fuel economy, more power per cm3 and greater overall performance.
Capacitive Discharge Ignition (CDI)
The CDI Unit System is used together with the ignition coil and functions as an over-rev protection device. This unit also provides stable idling.
Suzuki’s Anti Corrosion Finish
All Suzuki outboards receive this specially formulated, anti-corrosion finish. Applying the finish directly to the aluminum alloy allows for maximum bonding between the finish and aluminum creating an outstanding treatment against corrosion.
| MODEL | DF20A | 15A | DF9.9B |
| RECOMMENDED TRANSOM HEIGHT mm | S: 381, L: 508 | S: 381, L: 508 | S: 381, L: 508 |
| STARTING SYSTEM | Electric | Manual | Manual |
| WEIGHT kg *1 | S: 48, L: 49 | S: 44, L: 45 | S: 44, L: 45 |
| ENGINE TYPE | OHC | OHC | |
| FUEL DELIVERY SYSTEM | Battery-Less Multi-Point Sequential Electronic Fuel Injection | Battery-Less Multi-Point Sequential Electronic Fuel Injection | |
| NO. OF CYLINDERS | 2 | 2 | |
| PISTON DISPLACEMENT cm3 | 327 | 327 | |
| BORE ×STROKE mm | 60.4×57 | 60.4×57 | |
| MAXIMUM OUTPUT kW | 14.7 | 7.3 | |
| FULL THROTTLE OPERATING RANGE rpm | 5,300-6,300 | 4,700-5,700 | |
| STEERING | Tiller | Tiller | |
| OIL PAN CAPACITY Lit. | 1 | 1 | |
| FUEL TANK CAPACITY Lit. | 12 | 12 | |
| IGNITION SYSTEM | Digital CDI | Digital CDI | |
| ALTERNATOR | 12V 12A | 12V 6A | 12V 6A |
| ENGINE MOUNTING | Shear Mount | Shear Mount | |
| TRIM METHOD | Manual Trim and Tilt/ Power Tilt | Manual Trim and Tilt/ Power Tilt | |
| GEAR RATIO | 2.08:1 | 2.08:1 | |
| GEAR SHIFT | F-N-R | F-N-R | |
| EXHAUST | Through Prop Hub Exhaust | Through Prop Hub Exhaust | |
| PROPELLER SELECTION (Pitch)*2 | 7″-12″ | 7″-12″ | |
| All propellers are the 3-blade type |
- Dry weight: not including propeller and engine oil
- Please inquire at your local dealer for details of the propeller
The appearance, colors, and equipment of outboard motors may differ according to market and grade.
Specifications may change without prior notice.
*Manufacture data
